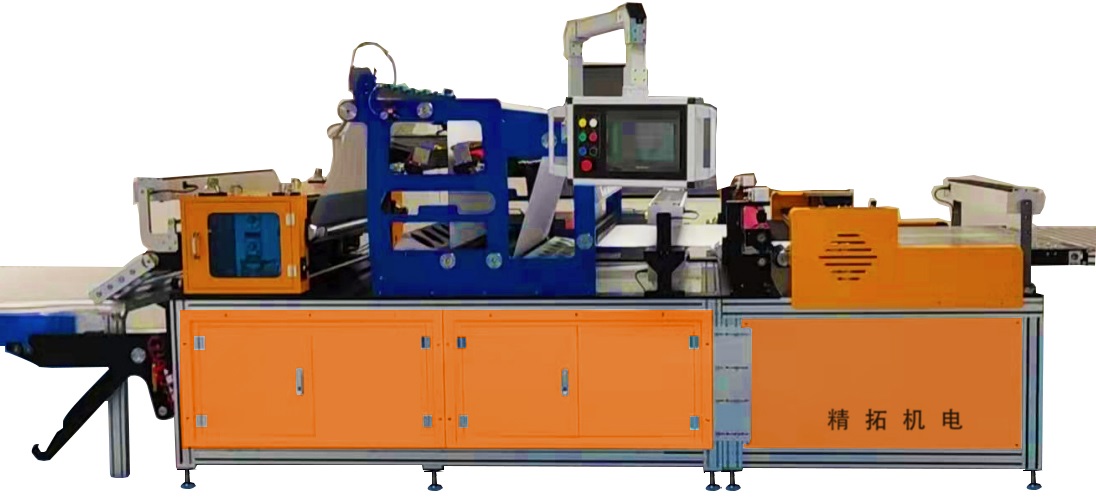

KTBQ1300 Filter discount glue injection production line
technical parameter
1. Maximum product width: 1500mm (700mm, 1000mm, 1300mm, 1500mm optional)
2. Incoming roll diameter: ≤ 1200mm
3. Production speed: 180%/min
4. Rubber strip distance: 25.4mm
5. Number of adhesive strips: 2X25 (with adhesive breaking function, each nozzle is equipped with solenoid valve)
6. Power supply voltage: 380V/50HZ
7. Folding height: 20-120mm
8. Total machine power: 35KW
9. Working air pressure: 0.6 mpa
10. Machine weight: 1650KG
11. Size of gluing receiving line: 7500X2800X1800mm (L X W X H), length of rear receiving belt: 3000mm
Configuration of glue supply and receiving production line
12. A 70L hot melt adhesive machine, two 3m rubber hoses, two 3.6m rubber hoses and two spray guns (each spray gun is controlled by 25 solenoid valves, that is, each spray gun can be controlled independently)
13. Six Fuji servo motors are equipped.
1. Maximum product width: 1500mm (700mm, 1000mm, 1300mm, 1500mm optional)
2. Incoming roll diameter: ≤ 1200mm
3. Production speed: 180%/min
4. Rubber strip distance: 25.4mm
5. Number of adhesive strips: 2X25 (with adhesive breaking function, each nozzle is equipped with solenoid valve)
6. Power supply voltage: 380V/50HZ
7. Folding height: 20-120mm
8. Total machine power: 35KW
9. Working air pressure: 0.6 mpa
10. Machine weight: 1650KG
11. Size of gluing receiving line: 7500X2800X1800mm (L X W X H), length of rear receiving belt: 3000mm
Configuration of glue supply and receiving production line
12. A 70L hot melt adhesive machine, two 3m rubber hoses, two 3.6m rubber hoses and two spray guns (each spray gun is controlled by 25 solenoid valves, that is, each spray gun can be controlled independently)
13. Six Fuji servo motors are equipped.
