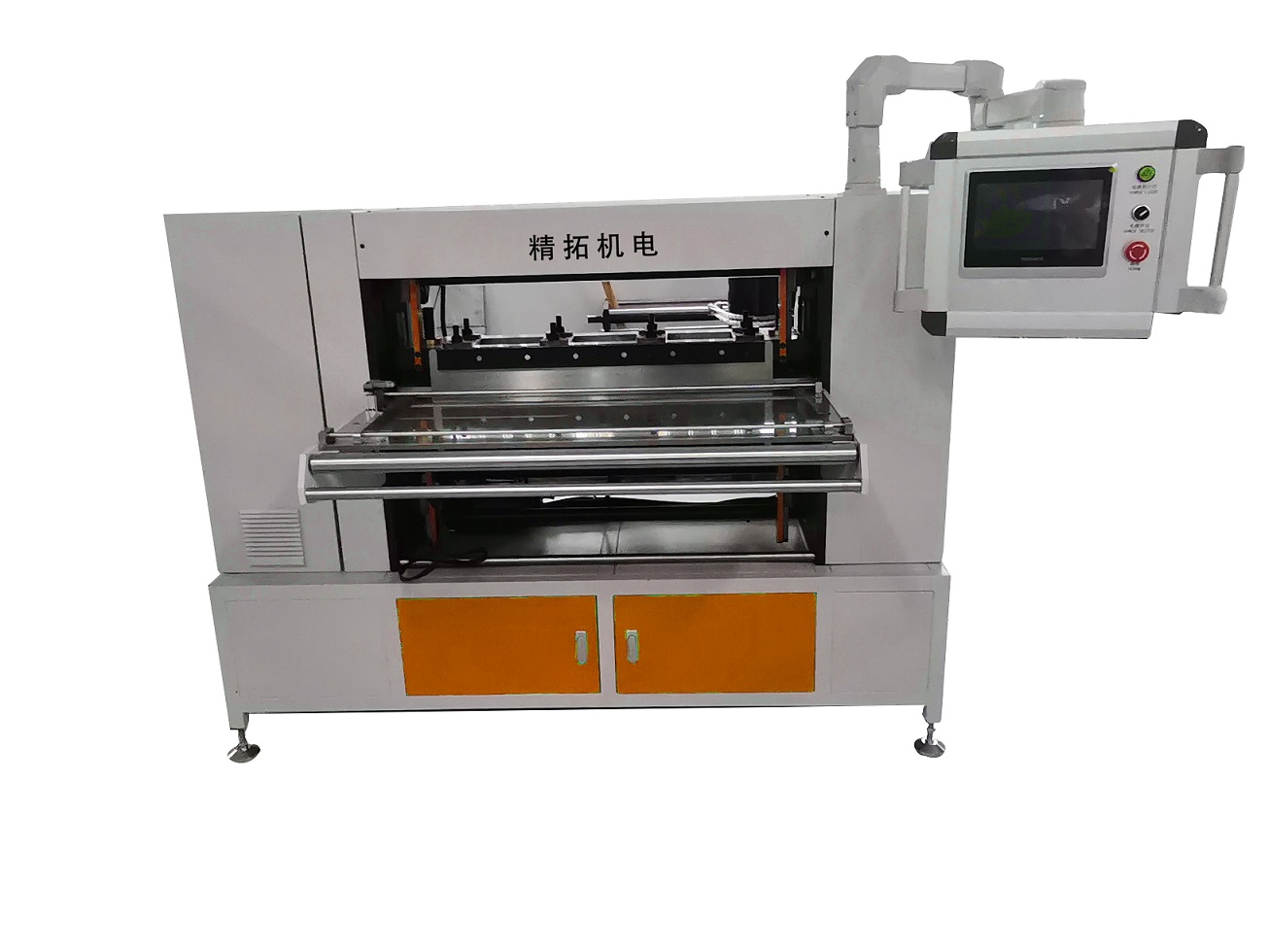

KTZZ80-1050-4 Origami machine

Technical parameters:

1) Maximum width of product: 1050mm
2) Adjustable folding height range: 10-70mm
3) Folding speed: 200 folds/min adjustable
4) Power supply voltage: 380V/50HZ
5) Motor power: 5KW
6) Preheating power 7.5KW
7) Temperature control range: room temperature - 200 ℃
8) Working pressure: 0.6MPa
9) Boundary dimension: 1670 * 1720 * 1530 (length, width and height)
10) Machine weight: 650kg
11) The folding machine adopts the alternate way of upper and lower knives to complete the folding work. The knife pitch is automatically adjusted by the computer, which can meet the requirements of different folding heights. The size is accurate and flat
12) The filter paper completes automatic counting, folding, preheating and shaping on the origami machine
13) This machine is also used for folding iron wire cloth and weaving cloth on hydraulic filter. And suitable for multi-layer folding
