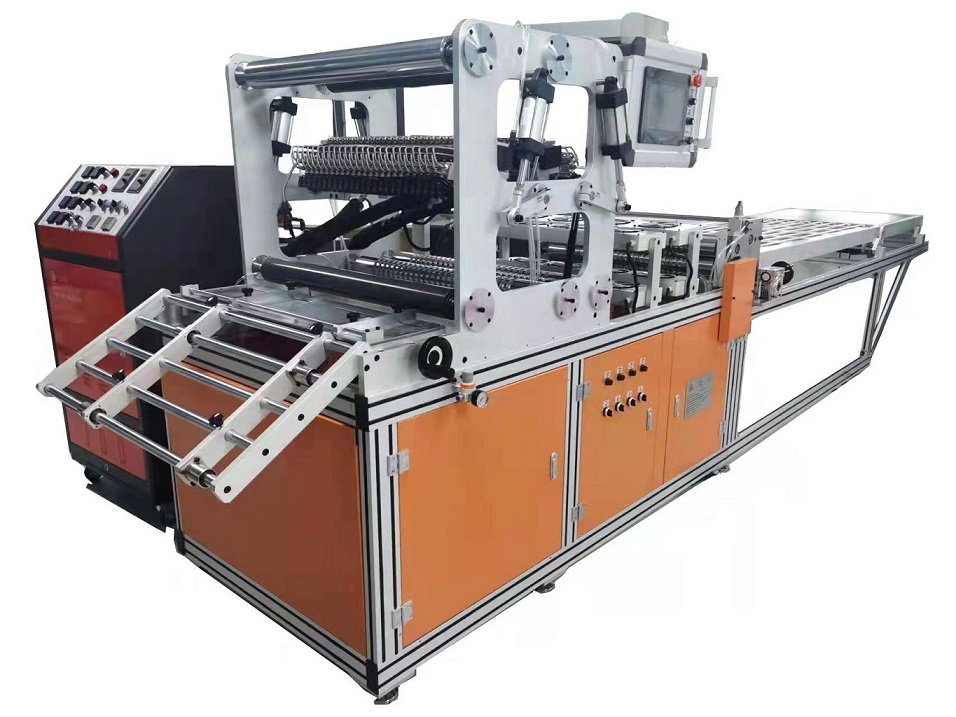

KTPP700-5 automatic PP intermittent gluing and wave receiving production line

Characteristics relative to other equipment on the market
1. The glue nozzle is controlled by microcomputer, which solves the problem of shutdown and delay caused by poor ship type keys. At the same time, the microcomputer uses different colors to display the glue nozzle keys, so that users can more intuitively select and view the switch status of the glue nozzle,;
2. The glue position on the paper is fully automatically adjusted, which greatly saves the manual adjustment time;
3. Integrated synchronous automatic control is adopted for the setting of rear end folding height and wave receiving spacing, which greatly saves manual adjustment time;
4. The product memory function can store and call out the previous product setting parameters, and start with one button, which greatly saves the manual reset time.

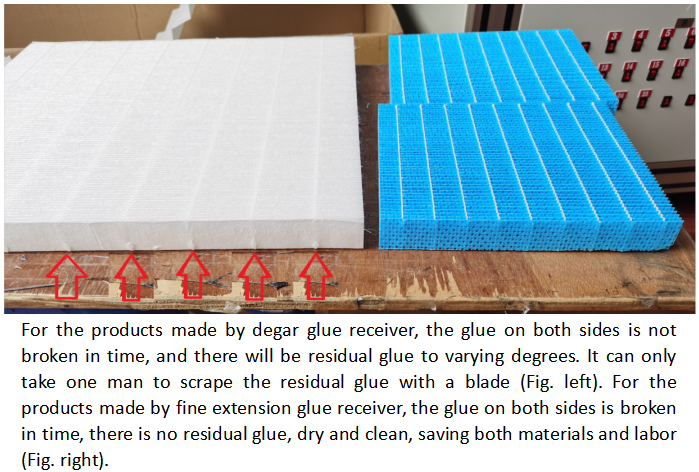

5.52 glue guns on the upper and lower sides can be controlled independently. According to the product characteristics, 26 glue guns in the upper row or the lower row can be selected to continuously discharge glue, and the other 26 glue guns in the other row can discharge glue intermittently according to requirements. This function is applicable to cylindrical filter products, etc.

Basic parameters of automatic PP intermittent gluing machine

1. Maximum width of product: 820mm

2. Incoming coil diameter: ≤ 1200mm
3. Production speed: 4-27m / min
4. Adhesive tape distance: 25.4mm
5. Number of glue strips: 2X26 (with glue breaking function, each nozzle is equipped with solenoid valve)
6. Power supply voltage: 380V / 50Hz
7. Origami height: 8-100 mm
8. Total power: 10kw
9. Working pressure: 0.6MPa
10. Machine weight: 800kg

11. Overall dimension: 5280X1180X1800mm (L x W x H)，Length of rear conveyor belt：3000mm

12. Glue machine size：950*700*1290mm (L x W x H)

Configuration of glue supply and conveyor belt
12. Equipped with 50kg hot melt glue machine, two 3M rubber tubes, two 3.6m rubber tubes and two spray guns (each spray gun is controlled by 26 solenoid valves, that is to say, each spray gun can be controlled independently)
13. Equipped with two 0.75KW Fuji servo motors and two 1:10 Taiwan precision reducers
